8T-HC
911063-1
- Ergonomically designed handle for operator comfort.
- Lift and turn lowering system prevents unintentional lowering.
- Built-in safety lowering control valve for safe lowering even under maximum load.
- Heavy duty fully welded structure in high quality steel.
- Built-in pressure relief valve prevents overloading.
- Large diameter swivel wheels for easy handling.
- Max. height 960 mm.
- Min. height 180 mm.

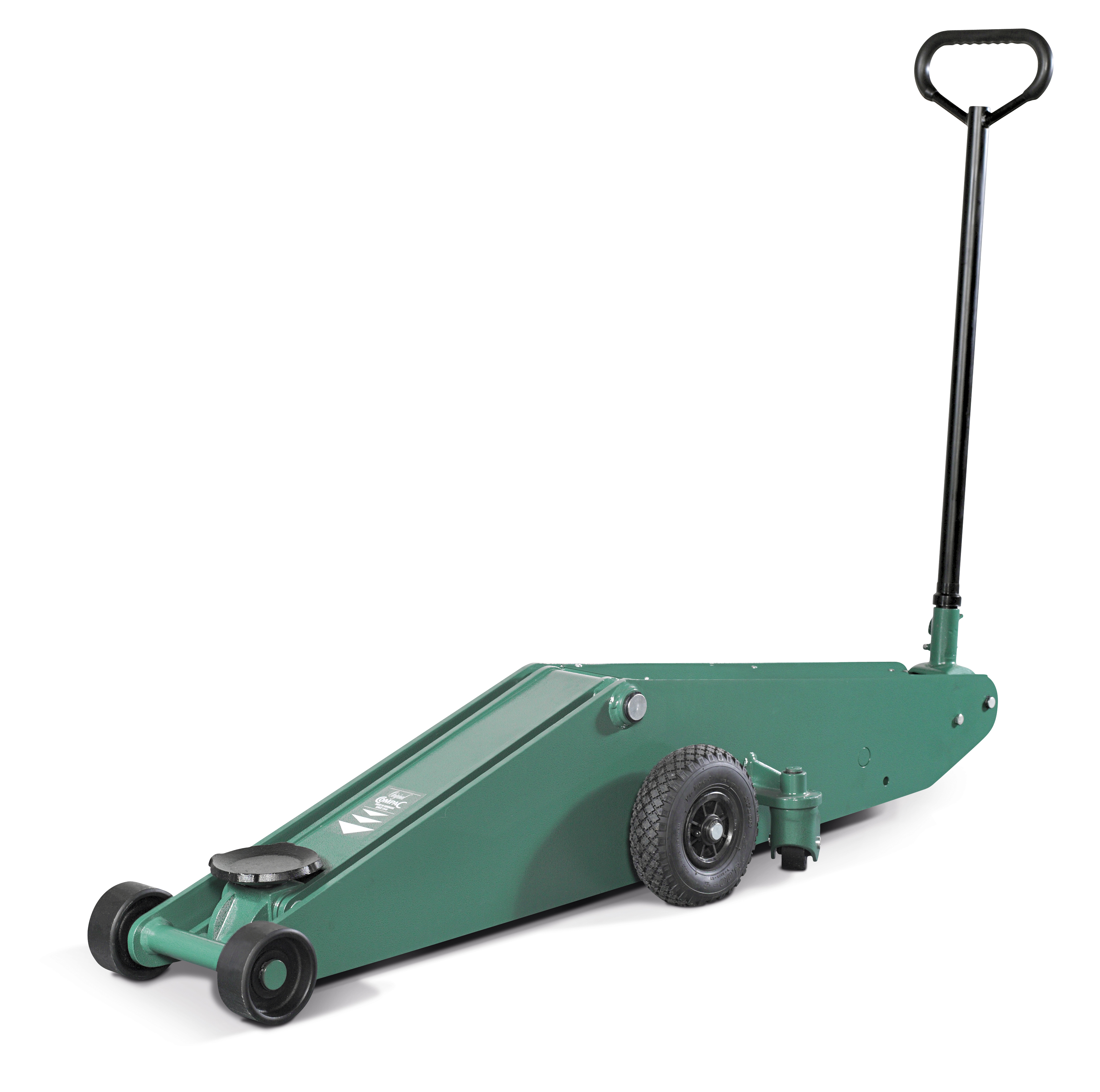

- Please note that the jack is shown with air rubber tires. (Accessory: 060200)
| Capacity (T) | 8 |
|---|---|
| Unit weight (kg) | 180 |
| Height (cm) | 35 |
| Length (cm) | 183 |
| Width (cm) | 47.5 |
| Quantity pr. pallet | 6 |
| Dimension drawing |
|
|---|---|
| Measurement A | 180 |
| Measurement B | 960 |
| Measurement C | 1830 |
| Measurement D | 350 |
| Measurement E | 475 |
| Measurement F | 1045 |
