FP 30
921368-1

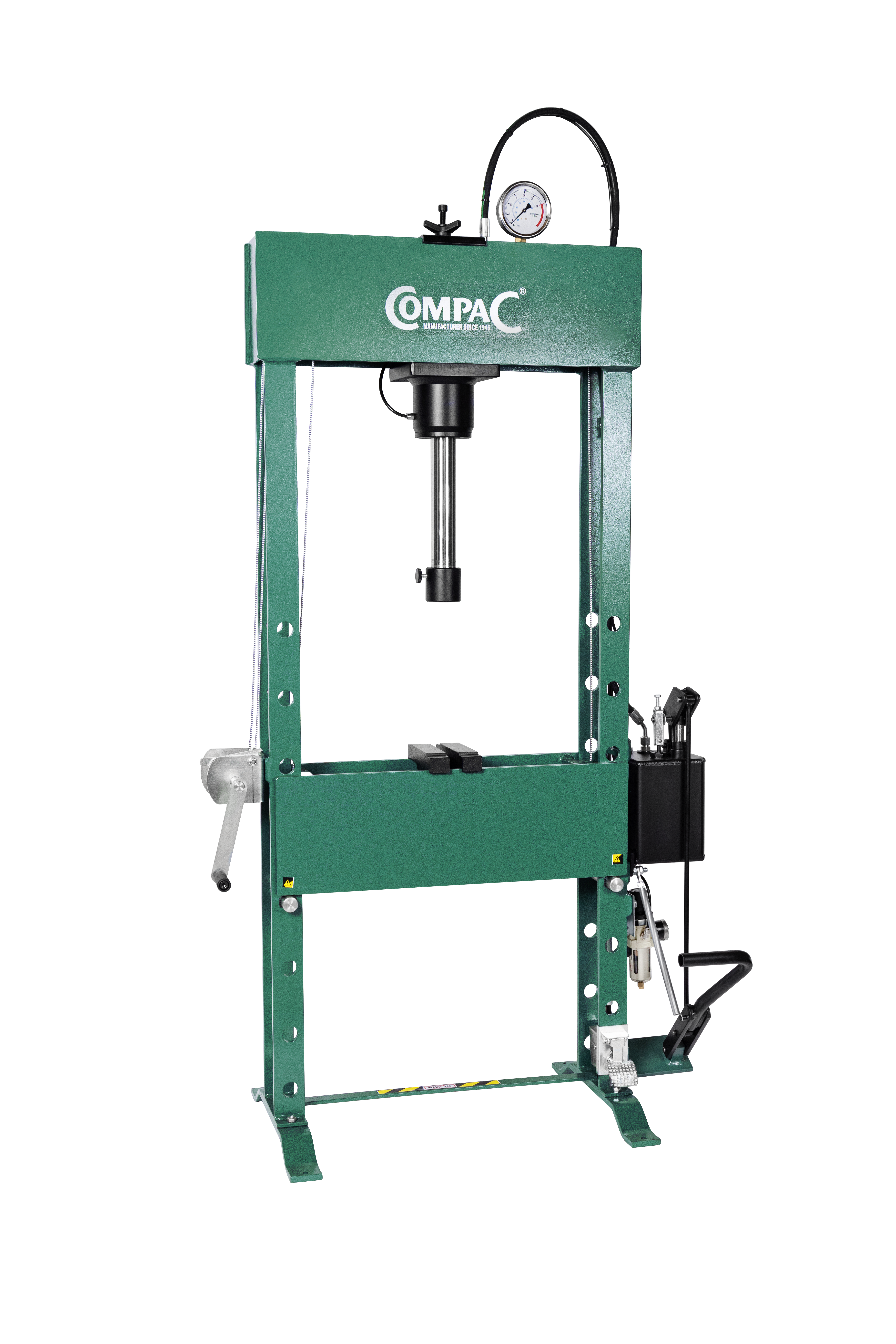

- Foot operated workshop press.

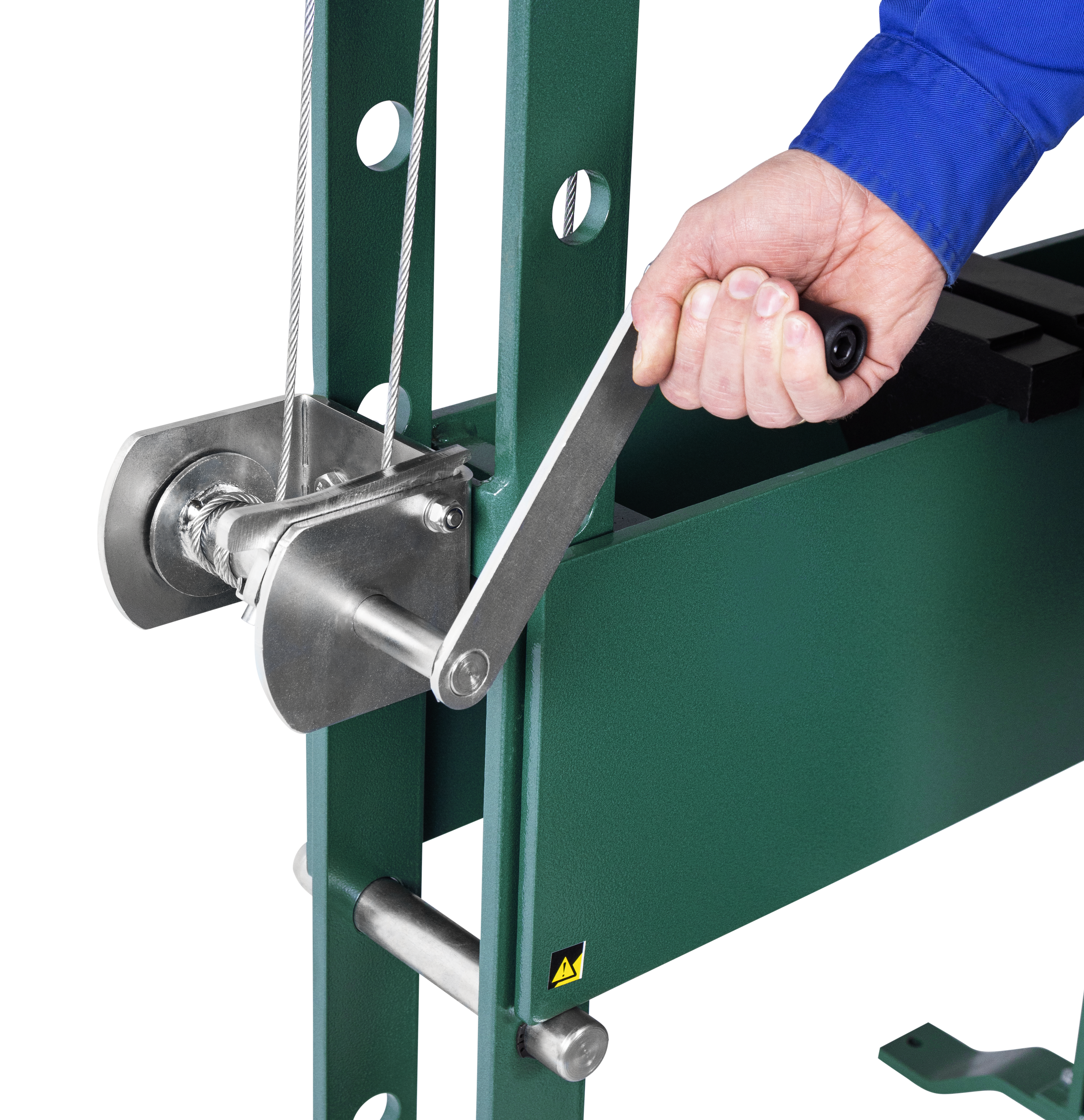

- Standard with winch for adjusting the height of the table.
- Capacity 30-ton.
- Foot operated air approach feature.
- Foot operated under load.
- Very long stroke of 240 mm.
- Built-in release system in foot pedal.

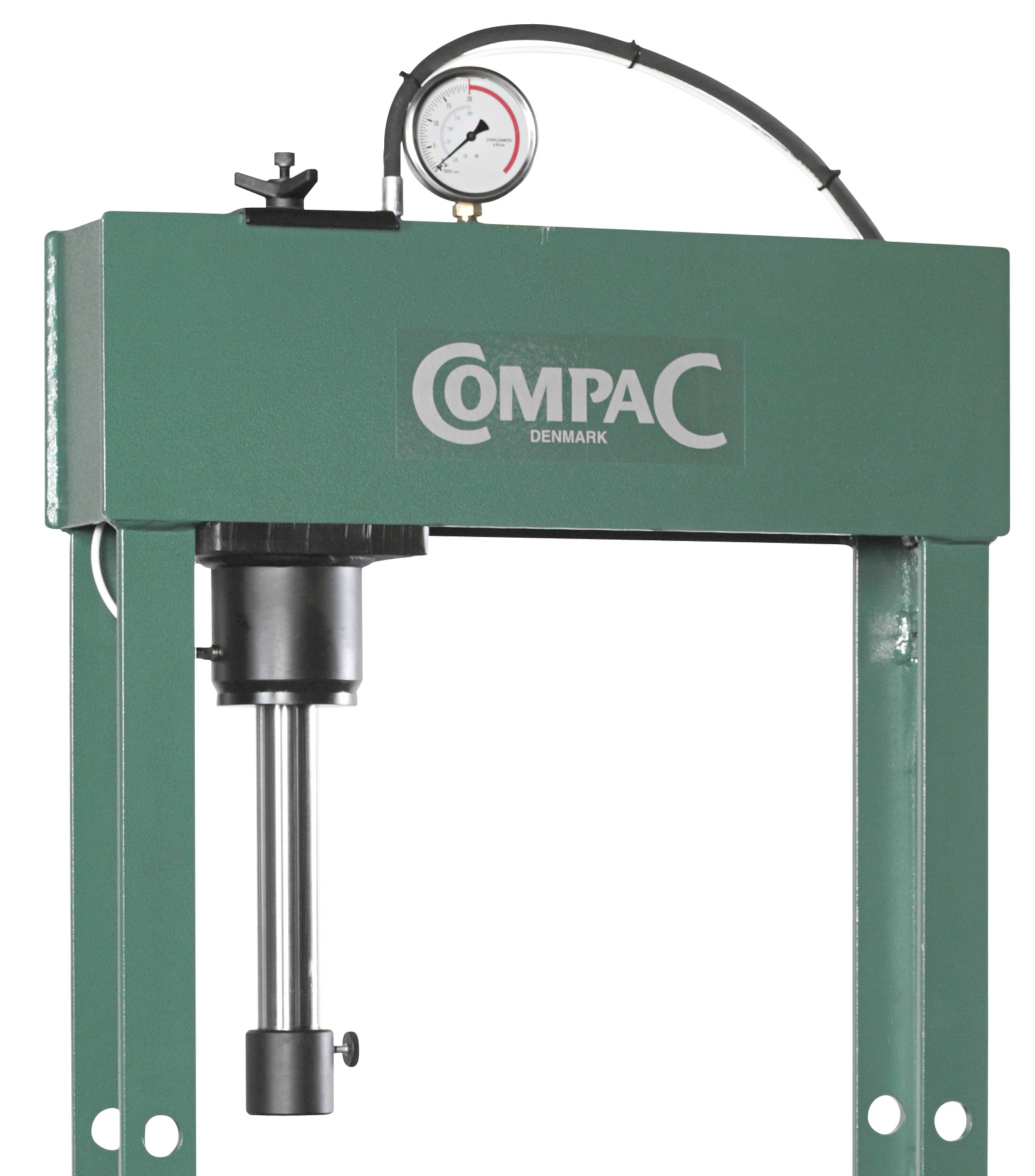

- Moveable cylinder.
- Hard chrome piston.
- Air connection fitted with water separator.
- Two V-blocks.
| Capacity (T) | 30 |
|---|---|
| Unit weight (kg) | 161 |
| Height (cm) | 215 |
| Length (cm) | 60 |
| Width (cm) | 90 |
| Quantity pr. pallet | 4 |
| Dimension drawing |
|
|---|---|
| Measurement A | 825 |
| Measurement B | 600 |
| Measurement C | 140 |
| Measurement D | 240 |
| Measurement E | 90 |
| Measurement F | 70 |
| Measurement G | 1800 |
| Measurement H | 890 |
| Measurement I | 505 |
